功能點Feature and functions

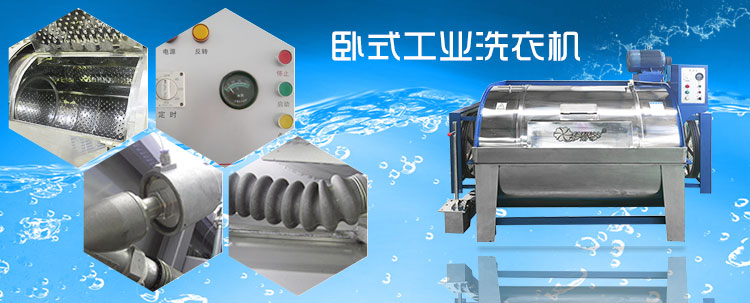

●QXP系列工業洗衣機在國內外同類產品技術的基礎上,研究開發的新一代洗滌機械,適用于洗滌各種棉絨、毛紡、麻類、化織混紡等衣物,對工礦、、賓館、等都具有廣泛用途,是選擇減輕勞動強度、提工作效率,降能耗的理想設備。
●用材精良,面板及內膽采用不銹鋼制造,外缸墻板采用噴鋅處理,經久耐用,使用壽命長。
●機械控制操作簡便,臥式設計,經濟實用。
●采用二皮帶傳動,傳動平穩,維護方便。
●QXP the series industry washer in the domestic and foreign similar products technology's foundation, the research development's new generation washes the machinery, is suitable in washes each kind of cotton velvet, the wool spinning, the hemp, to melt weaves clothing and so on fabric blending, to the industry and mining, the school, the guesthouse, the medicine and so on has the widespread use, is the choice reduces the labor intensity, the enhancement working efficiency, reduces the energy consumption the ideal equipment.
●Timber wood excellent, the kneading board and in the gallbladder uses the high quality stainless steel manufacture, outside the cylinder wall plate uses spurts zinc processing, durable, the service life is long.
●The mechanism control operation is simple, the horizontal type design, the economy is practical.
●Uses two level of belt transmissions, the transmission is steady, the service is convenient.
●QXP系列工業洗衣機在國內外同類產品技術的基礎上,研究開發的新一代洗滌機械,適用于洗滌各種棉絨、毛紡、麻類、化織混紡等衣物,對工礦、、賓館、等都具有廣泛用途,是選擇減輕勞動強度、提工作效率,降能耗的理想設備。
●用材精良,面板及內膽采用不銹鋼制造,外缸墻板采用噴鋅處理,經久耐用,使用壽命長。
●機械控制操作簡便,臥式設計,經濟實用。
●采用二皮帶傳動,傳動平穩,維護方便。
●QXP the series industry washer in the domestic and foreign similar products technology's foundation, the research development's new generation washes the machinery, is suitable in washes each kind of cotton velvet, the wool spinning, the hemp, to melt weaves clothing and so on fabric blending, to the industry and mining, the school, the guesthouse, the medicine and so on has the widespread use, is the choice reduces the labor intensity, the enhancement working efficiency, reduces the energy consumption the ideal equipment.
●Timber wood excellent, the kneading board and in the gallbladder uses the high quality stainless steel manufacture, outside the cylinder wall plate uses spurts zinc processing, durable, the service life is long.
●The mechanism control operation is simple, the horizontal type design, the economy is practical.
●Uses two level of belt transmissions, the transmission is steady, the service is convenient.
技術參數Technical parameters
|
型號 model 項目 item |
單位 unit |
QXP-30 | QXP-50 | QXP-70 | QXP-100 | |
| 洗滌容量 | Washing capacity | kg | 30 | 50 | 70 | 100 |
| 滾籠尺寸 | Cage size | mm | ¢660×1000 | ¢850×1000 | ¢920×1220 | ¢980×1630 |
| 進水管徑 | Into the water pipe diameter | inch | 1.5″ | 2″ | 2″ | 2″ |
| 蒸汽管徑 | Steam pipe diameter | inch | 0.75″ | 1×1″ | 2×1″ | 2×1″ |
| 排水管徑 | Diameters | inch | 2″ | 3″ | 3″ | 4″ |
| 蒸汽壓力 | Steam pressure | MPA | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| 電機功率 | Motor power | KW | 1.5 | 3 | 4 | 4 |
| 額定電壓 | Rated voltage | V | 380 | 380 | 380 | 380 |
| 外型尺寸 | Dimension (L×W×H) | mm |
1860× 1160×1290 |
1880× 1300×1510 |
2120× 1360×1590 |
2260× 1500×1720 |
| 整機重量 | Machine weight | kg | 387 | 595 | 595 | 912 |
|
型號 model 項目 item |
單位unit | QXP-150 | QXP-200 | QXP-250 | QXP-300 | |
| 洗滌容量 | Washing capacity | kg | 150 | 200 | 250 | 300 |
| 滾籠尺寸 | Cage size | mm | ¢1100×1800 | ¢1210×2000 | ¢1210×2200 | ¢1310×2200 |
| 進水管徑 | Into the water pipe diameter | inch | 2″ | 2″×2″ | 2″×2″ | 2″×3″ |
| 蒸汽管徑 | Steam pipe diameter | inch | 2×1″ | 2×1″ | 2×1″ | 2×1″ |
| 排水管徑 | Diameters | inch | 2×4″ | 2×4″ | 2×4″ | 2×4″ |
| 蒸汽壓力 | Steam pressure | MPA | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| 電機功率 | Motor power | KW | 5.5 | 7.5 | 7.5 | 7.5 |
| 額定電壓 | Rated voltage | V | 380 | 380 | 380 | 380 |
